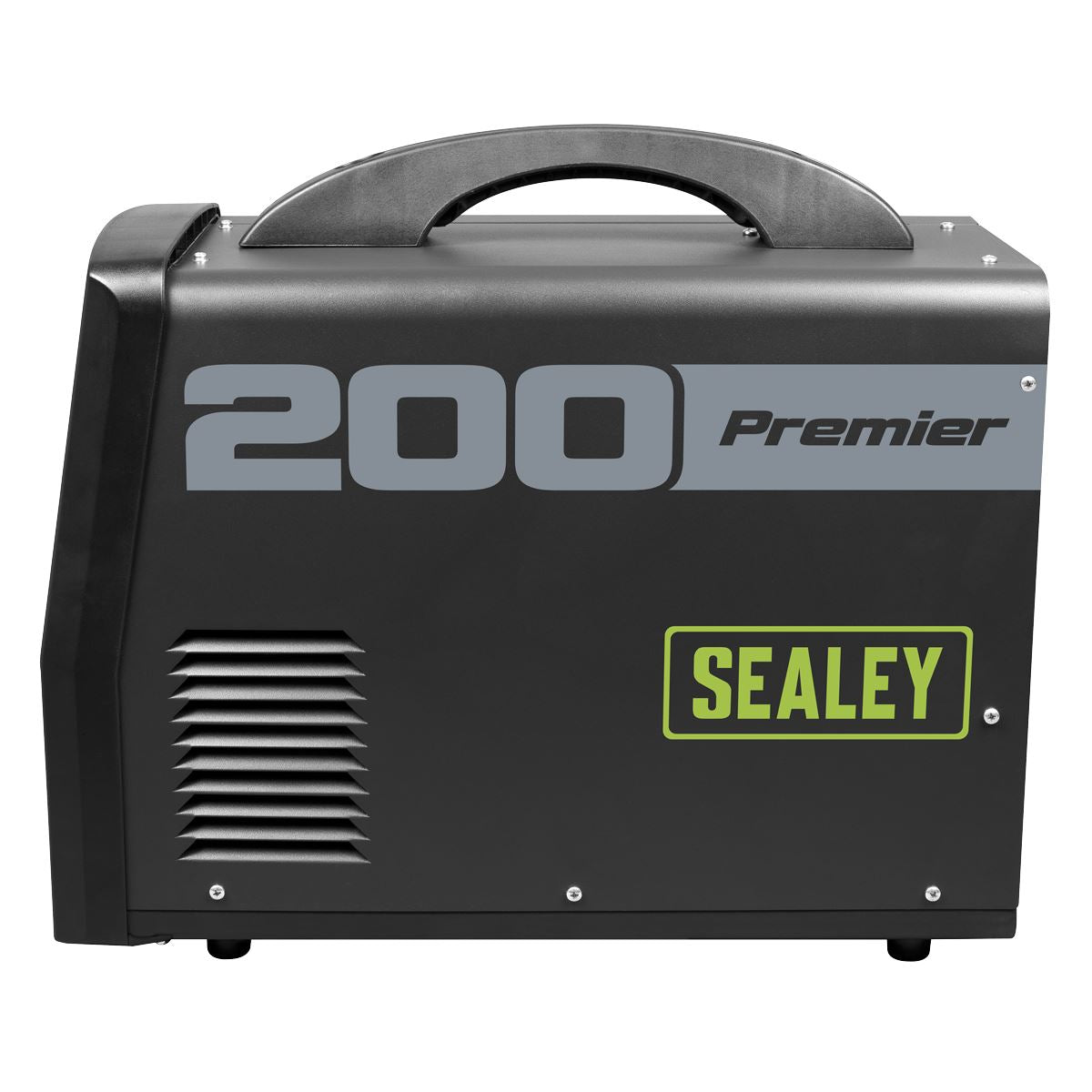

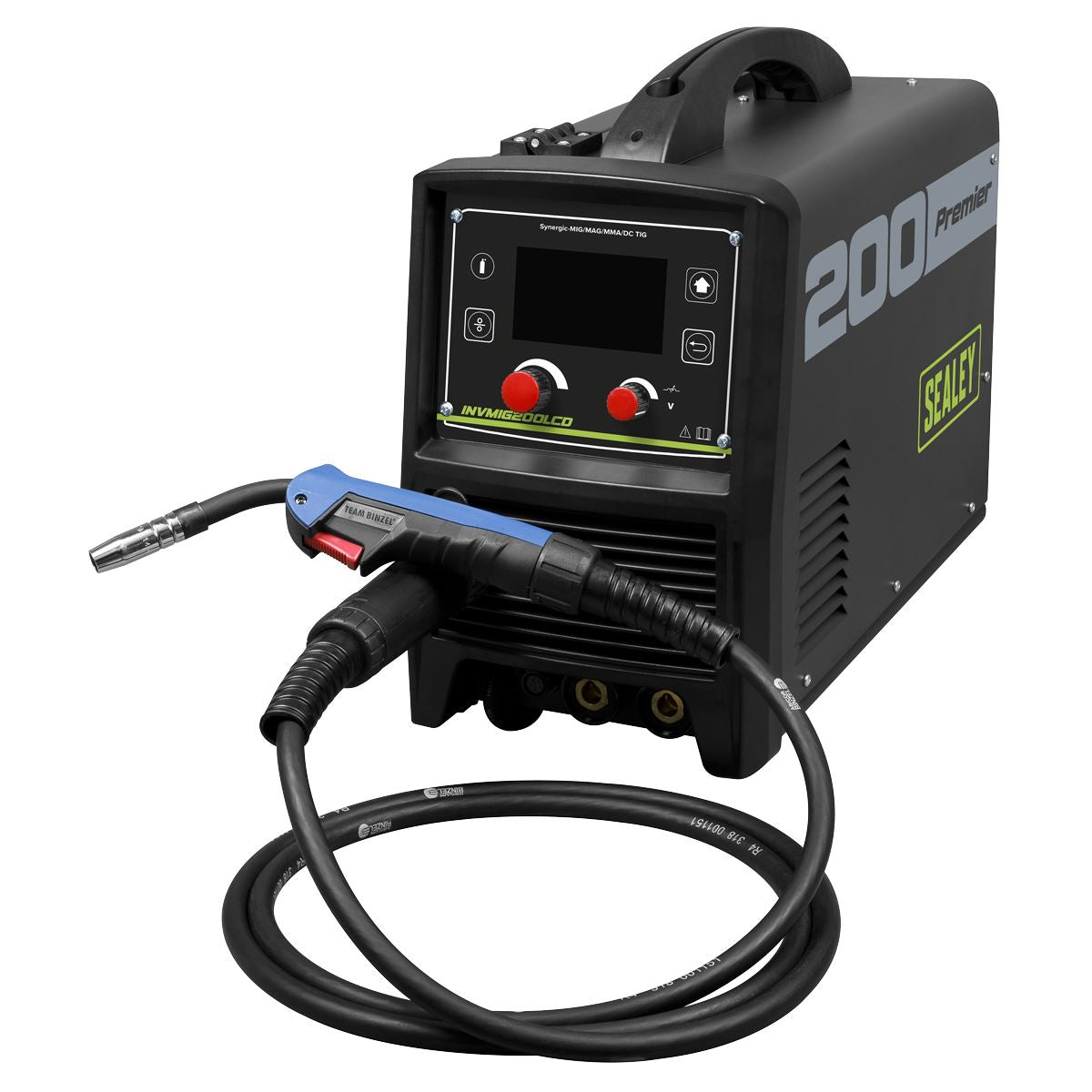

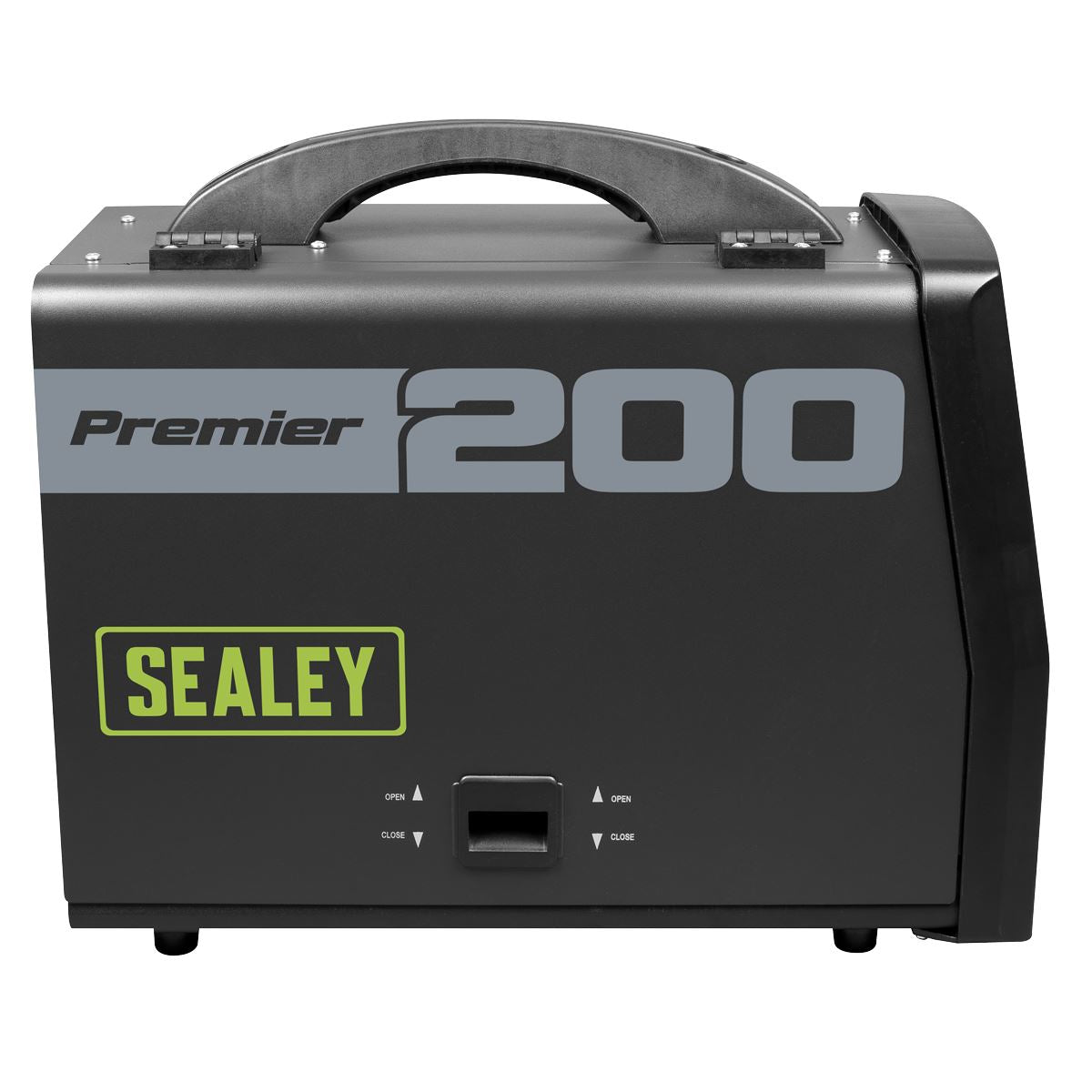

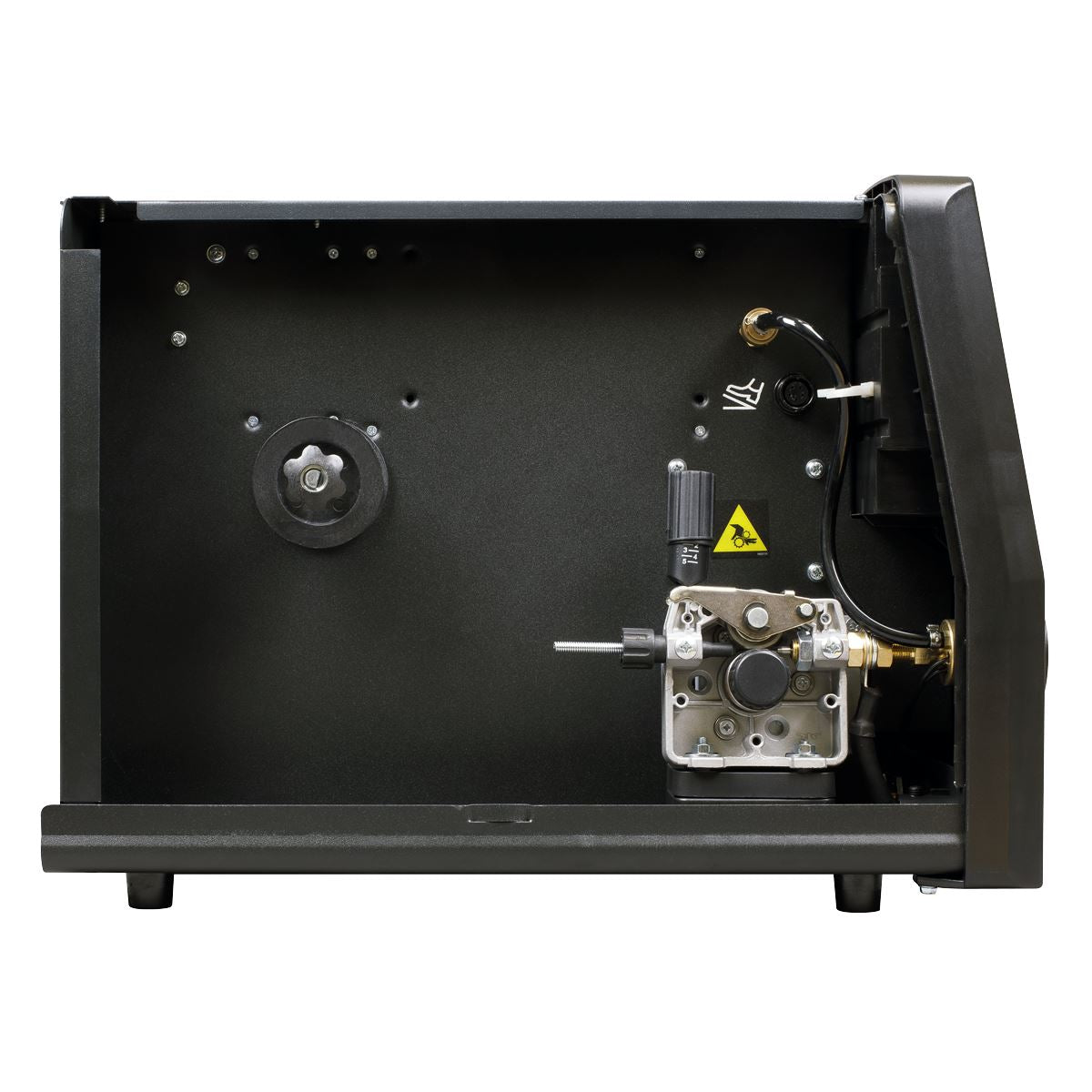

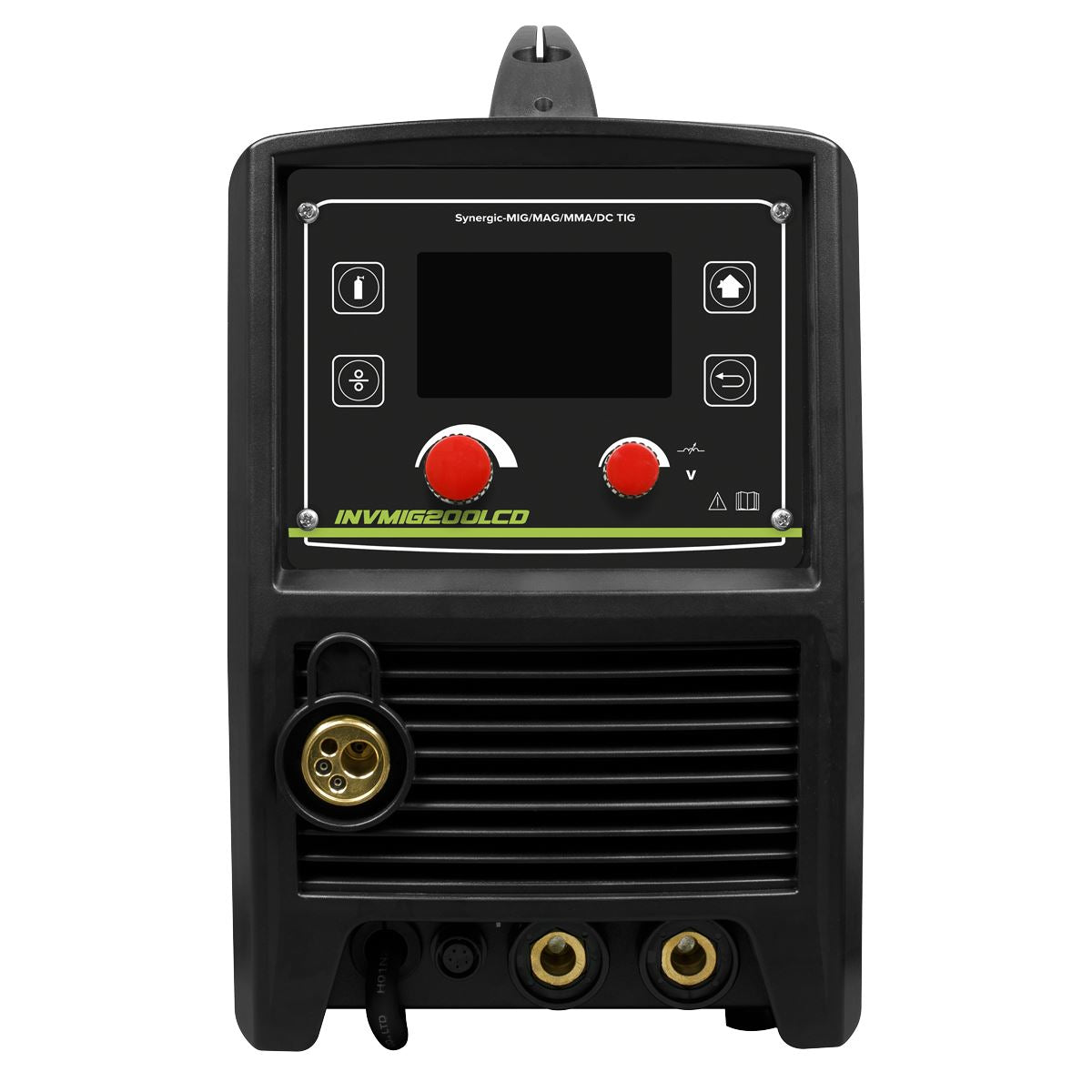

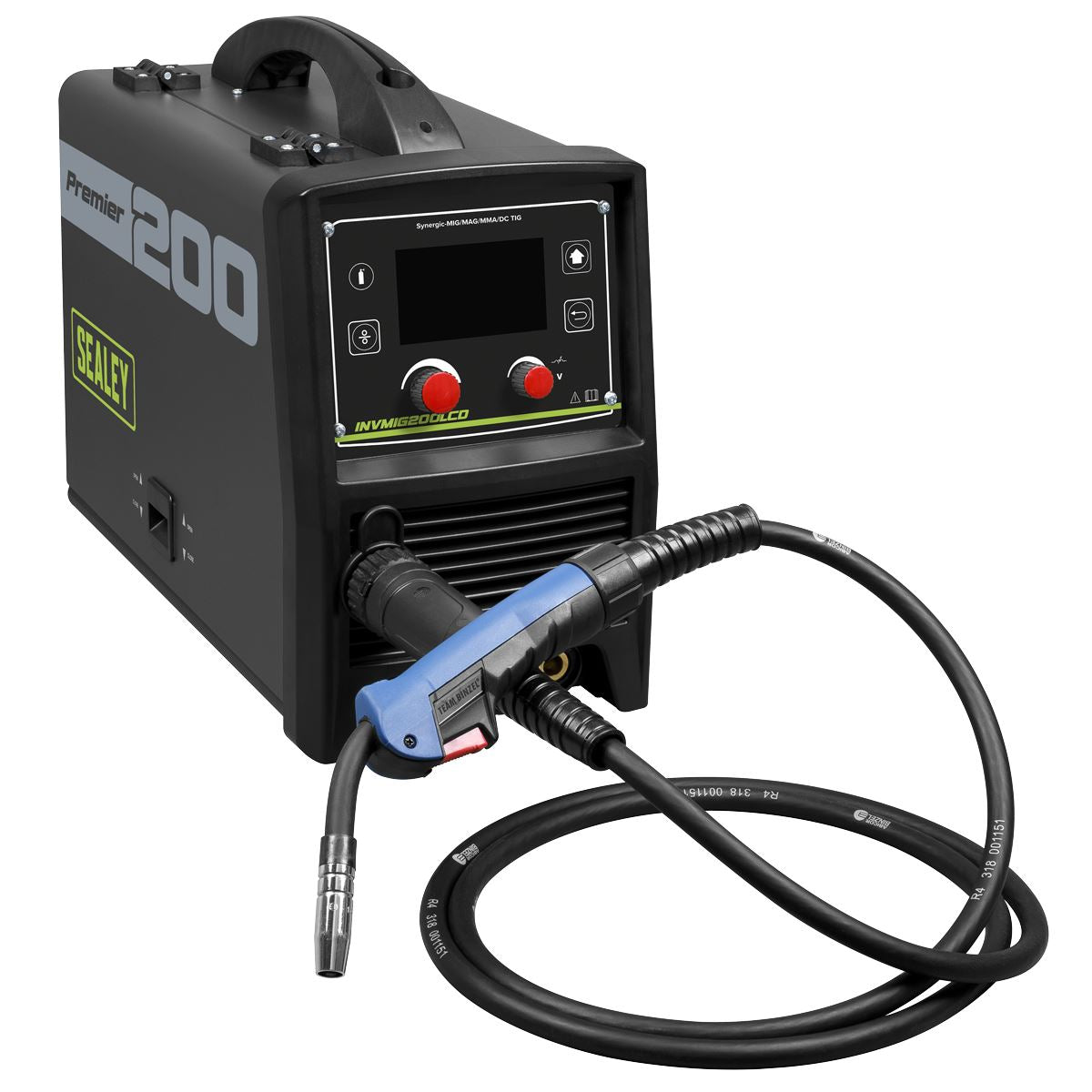

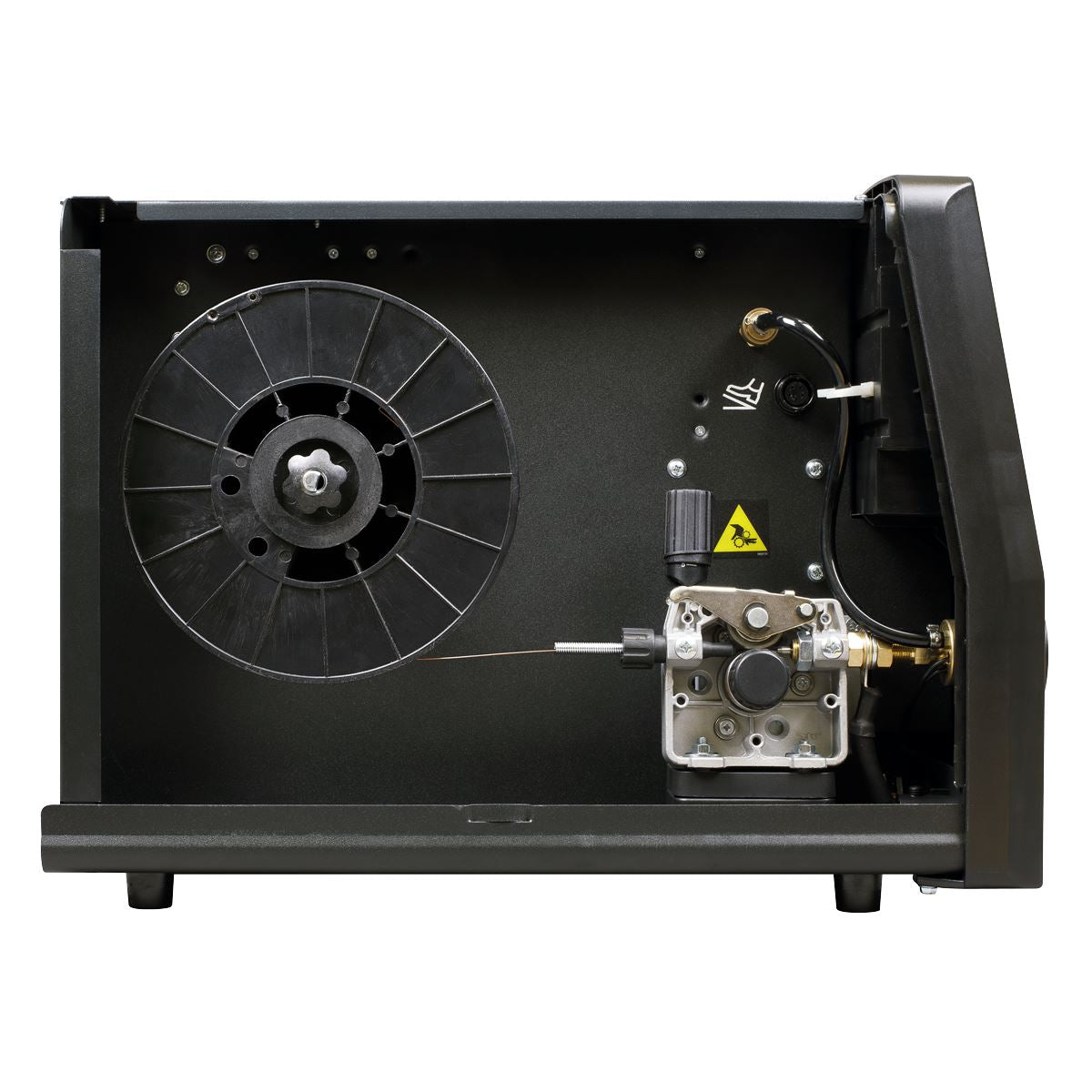

Sealey INVMIG200LCD Inverter Welder MIG TIG & MMA 200A with LCD Screen

3-in-1 Welder uses state-of-the-art inverter technology to achieve MIG/TIG/MMA (Arc). Inverter technology offers many advantages over traditional transformer type welders, giving greater duty cycles and more power factor efficiency. Fan Cooled DC power supply for MIG and TIG, suitable to weld steel, stainless steel, copper, nickel, titanium, and their alloys. Also suitable for MMA (Arc) welding with a variety of rods including rutile, basic and stainless from Ø1.6 to ø4mm. Fully functional LCD front panel with easy to follow set-up. Up to four set-ups can be saved on the machine for fast loading. Switchable between MIG, TIG* or MMA* welding modes (*optional torches required). Supplied with 3m MIG torch, 3m 16mm² earth cable, both with 35-70 quick connectors, 4m gas hose and regulator.

Product Specification

• Brand: Premier
• Nett Weight: 15kg (power source only)
• Duty Cycle:
• MIG: 20% @ 200A, 100% @ 89A
• TIG: 20% @ 180A, 100% @ 80A
• MMA (Arc) 20% @ 180A, 100% @ 80A
• Wire Capacity: 5kg
• Electrode Capacity: 1.6 - 4mm
• Absorbed Power: 8.6kW
• Supply: 230V **
• Insulation: IP21S
• Protection: F
• IP Rating:
• Weight: 17kg
• MIG Torch: Euro Non-Live BINZEL® MB15*
• MMA Accessory Kit (Optional) MMA01
• TIG Accessory Kit (Optional) TIG10S
({IF["Note: * included as standard ** To acheive maximum power a 32A supply may be required."!=""]})
• Note: * included as standard ** To acheive maximum power a 32A supply may be required.
