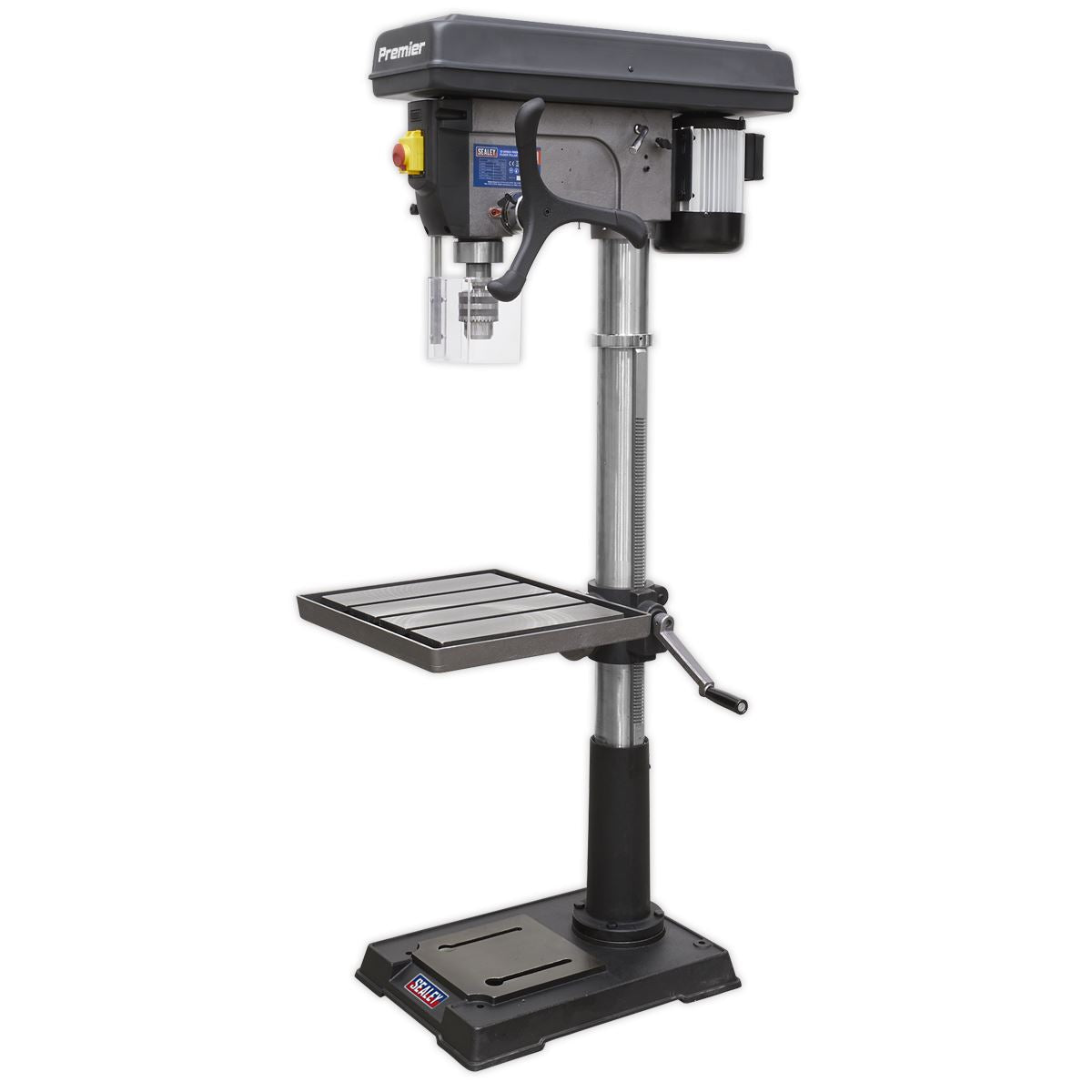

Sealey PDM260F Pillar Drill Floor 12-Speed 1100W 230V

One of a comprehensive range of Premier floor standing pillar drills for the professional workshop. Features heavy-duty aluminium-bodied motor for long and reliable performance. No-volt release switch to prevent inadvertent start-up and pulley cover protected by microswitch to prevent drill operating when cover is open. Fitted with an integral work light which illuminates the drilling table giving operator a clear view of the drilling process (bulb not included). Supplied with an electrically inter-locked chuck guard. Large sized square table fitted with precision rack and pinion height adjustment.

Product Specification

• Base Size: 575 x 455mm
• Brand: Premier
• Collar Diameter: Ø85mm
• Column Diameter: Ø92mm
• Drilling Capacity (Chuck Size): 20mm
• Integral Work Light: Yes
• Maximum Distance Spindle to Base: 1160mm
• Maximum Distance Spindle to Table: 680mm
• Motor Power (Start): 1100W(1500W)
• Nett Weight: 110kg
• Number of Speeds: 12
• Optional Accessories: PDM/KC - Keyless Pillar Drill Chuck 16mm
• Overall Height: 1710mm
• Speed Range: 120-3480rpm
• Spindle Centre to Column: 260mm
• Spindle Nose Taper: MT4
• Spindle Travel: 120mm
• Supply: 230V
• Swing: 520mm
• Working Base Surface Size: 410 x 330mm
• Working Table Surface Size: 425 x 475mm
