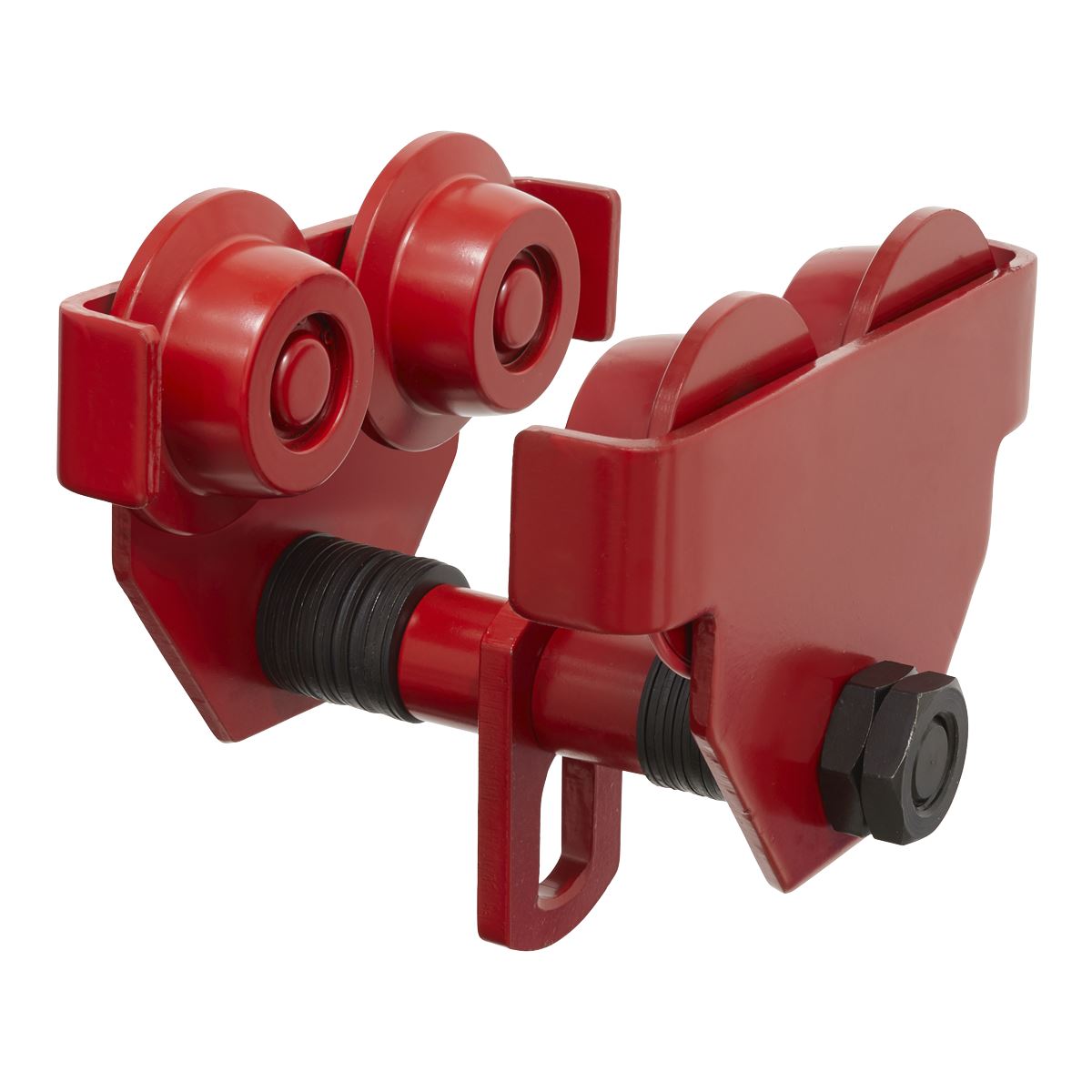

Sealey PT1000 Plain Trolley 1 Tonne

Suitable for use with our lever hoists or chain blocks. Designed for mounting onto an I-beam or RSJ to allow load to be manoeuvred sideways. Incorporates wheel guards to prevent contact with other trolleys mounted on same load bearer.

Product Specification

• Brand: Sealey
• Nett Weight: 12kg
• Capacity: 1000kg
• Test Load: 1500kg
• Track Width Adjustable Range: 64-140mm
• Minimum Curve Radius: 1000mm
• A: 255mm
• B: 127.5mm
• C: 127.5mm
• D: 104mm
• E: 128mm
• Weight: 13kg
• Minimum Standard I-Beam Dimensions (D x W x Web): 125 x 75 x 5.5mm
• Maximum Distance Between Spans: 2500mm
• Maximum Standard I-Beam Dimensions (D x W x Web): 250 x 125 x 7.5mm
• Maximum Distance Between Spans: 6000mm
• Refer to catalogue for diagram:
